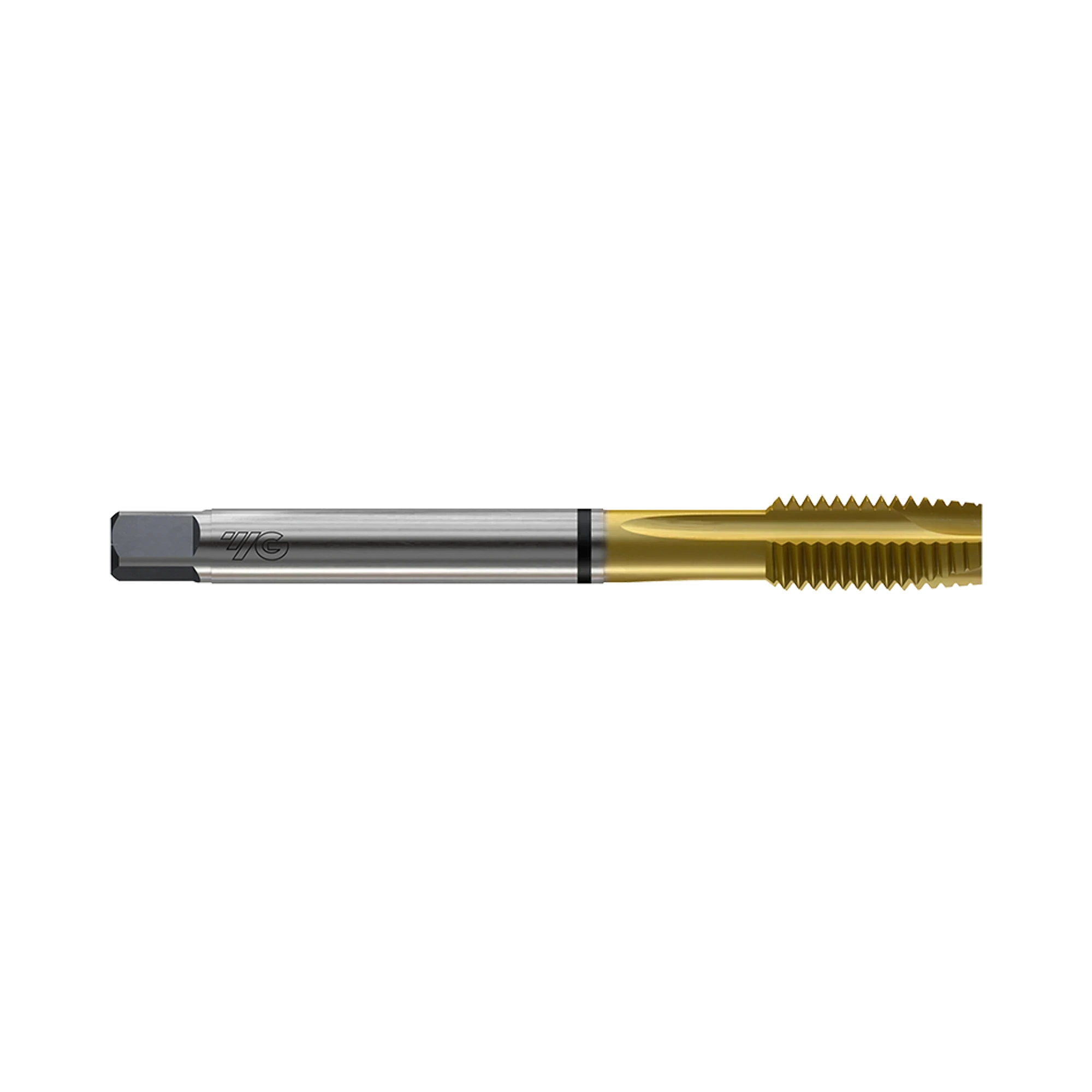

(TD874) HSS-E (M35) UNF Gun Point Combo Tap for Multi Purpose (TiN Coated)
TiN-coated HSS-E UNF spiral point combo tapCode: TD874182
-
Key Features
- TiN-coated HSS-E spiral point combo tap
- UNF Unified Fine thread range from #4–48 to 1–12
- Spiral point geometry for through-hole machine tapping
Made in South Korea
Through-hole threading
Spiral point geometry supports machine tapping in through-hole UNF applications.
Unified Fine range
Covers common UNF sizes from #4–48 through to 1–12.
Controlled thread form
2B tolerance, B thread form and 60° angle support defined UNF threads.
| SKU | Size | TPI | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD874182 | #4 | 48UNF | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.4 | 5 days | $78.00 | ||
| TD874222 | #5 | 44UNF | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.7 | 5 days | $63.60 | ||
| TD874262 | #6 | 40UNF | 12.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 3.0 | 5 days | $63.60 | ||
| TD874302 | #8 | 36UNF | 13.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.5 | 5 days | $64.20 | ||
| TD874342 | #10 | 32UNF | 15.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.1 | 5 days | $65.20 | ||
| TD874382 | #12 | 28UNF | 16.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 4.7 | 5 days | $64.20 | ||
| TD874422 | 1/4 | 28UNF | 17.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 5.5 | 5 days | $64.20 | ||
| TD874462 | 5/16 | 24UNF | 17.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.9 | 5 days | $72.30 | ||
| TD874502 | 3/8 | 24UNF | 18.0 | 100.0 | 39.0 | 9.0 | 7.0 | 10.0 | 3 | 8.5 | 5 days | $86.00 | ||
| TD874542 | 7/16 | 20UNF | 22.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | 9.9 | 5 days | $103.90 | ||
| TD874582 | 1/2 | 20UNF | 22.0 | 100.0 | 40.0 | 9.0 | 7.0 | 10.0 | 3 | 11.5 | 5 days | $104.90 | ||
| TD874622 | 9/16 | 18UNF | 22.0 | 100.0 | 40.0 | 11.0 | 9.0 | 12.0 | 3 | 12.9 | 5 days | $117.00 | ||
| TD874662 | 5/8 | 18UNF | 22.0 | 100.0 | 40.0 | 12.0 | 9.0 | 12.0 | 3 | 14.5 | 5 days | $146.00 | ||
| TD874722 | 3/4 | 16UNF | 25.0 | 110.0 | 44.0 | 14.0 | 11.0 | 14.0 | 4 | 17.5 | 5 days | $210.70 | ||
| TD874762 | 7/8 | 14UNF | 26.0 | 125.0 | 50.0 | 18.0 | 14.5 | 17.0 | 4 | 20.5 | 5 days | $247.70 | ||
| TD874802 | 1 | 12UNF | 28.0 | 140.0 | 54.0 | 20.0 | 16.0 | 19.0 | 4 | 23.25 | 5 days | $316.70 |
Add (TD874) HSS-E (M35) UNF Gun Point Combo Tap for Multi Purpose (TiN Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 TD874 is a TiN-coated HSS-E UNF spiral point combo tap for multi-purpose machine tapping. Its spiral point design makes this machine tap suited to through-hole UNF threading applications. It provides Unified Fine thread sizes from #4–48 UNF through to 1–12 UNF. TD874 combines 2B thread tolerance, B thread form and a 60° thread angle.
Smaller sizes #4 to 3/8 use DIN 371 shanks, while 7/16 to 1 use DIN 374. The TiN coating distinguishes the TD874 series within YG-1’s multi-purpose combo tap range. Special tap geometry is designed for correct thread profiles and long tool life.
- TiN-coated HSS-E spiral point combo tap
- UNF Unified Fine thread range from #4–48 to 1–12
- Spiral point geometry for through-hole machine tapping
- 2B thread tolerance with B thread form
- 60° thread angle
- DIN 371 and DIN 374 shank standards
