(TD804) HSS-E (M35) Metric Spiral Flute Combo Tap for Multi Purpose (TiN Coated)
TiN-Coated HSS-E Metric Combo Tap for Blind Holes
- SKU
- TD804136
Key features

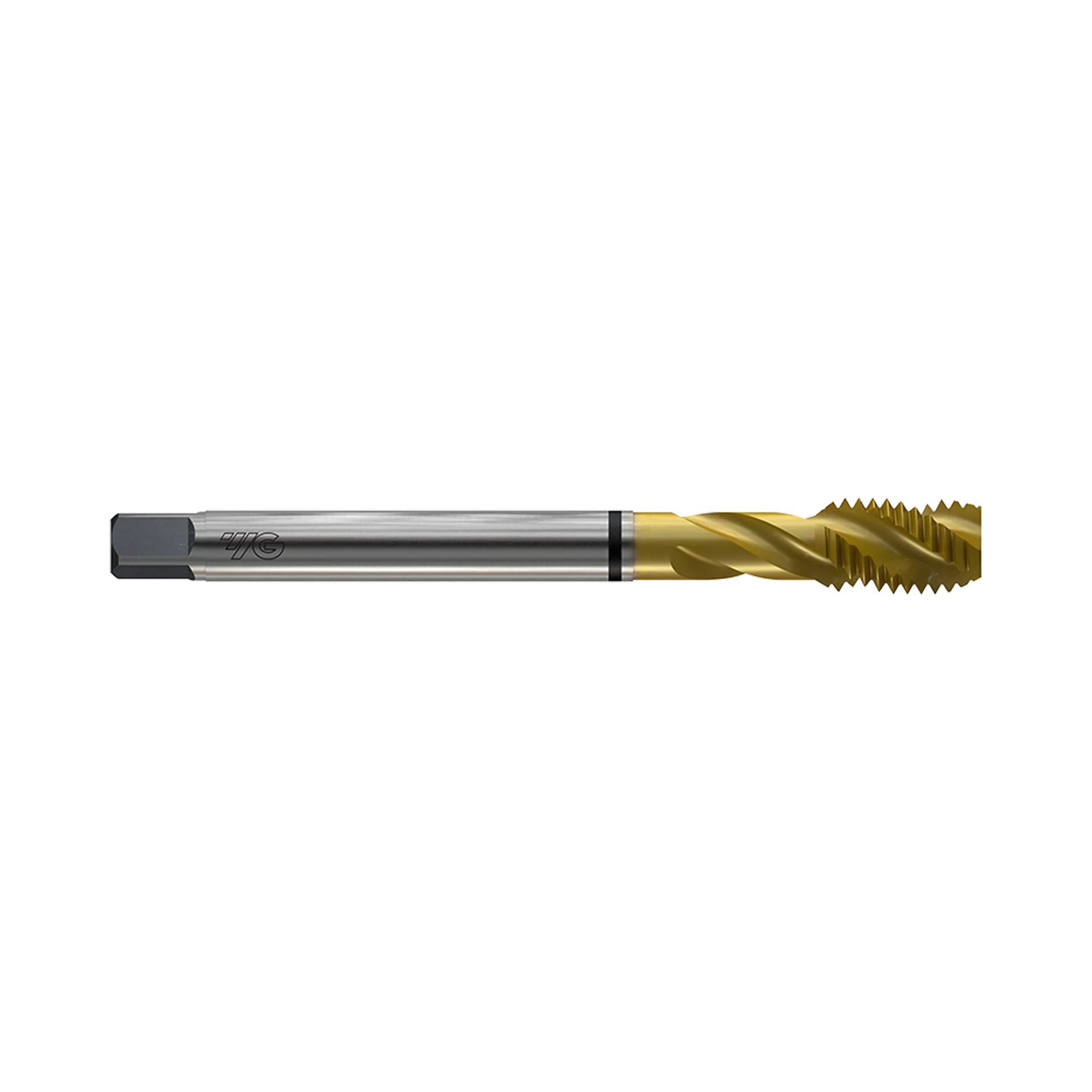

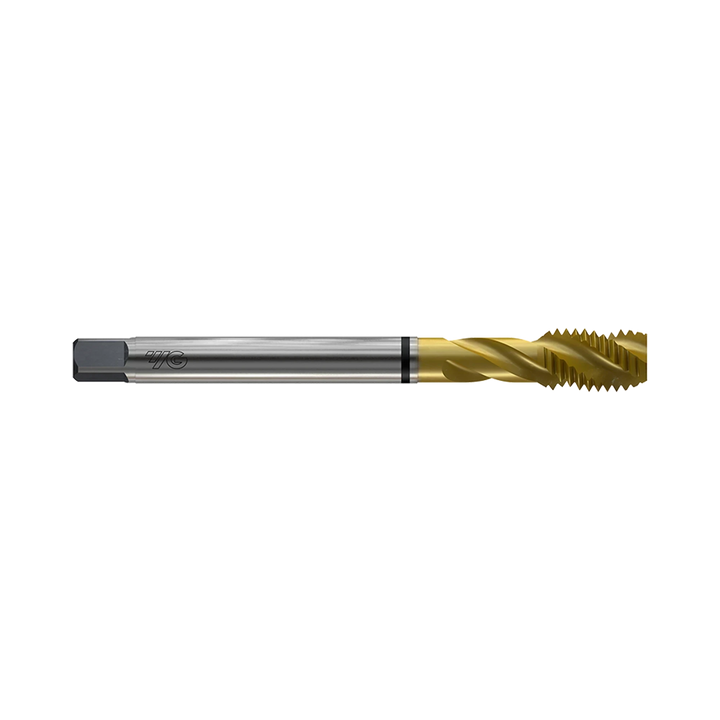

- HSS-E metric combo tap with TiN surface treatment
- Spiral flute geometry for blind holes up to 2.5×D
- DIN 371/376 tool standard
Made in South Korea
Combined operation
Combines drilling and tapping to streamline metric thread production in suitable blind-hole applications
Blind-hole geometry
40° spiral flutes support chip evacuation when threading blind holes up to 2.5×D
Useful metric range
Covers supplied metric coarse sizes from M2 to M30 with pitches from 0.4 mm to 3.5 mm

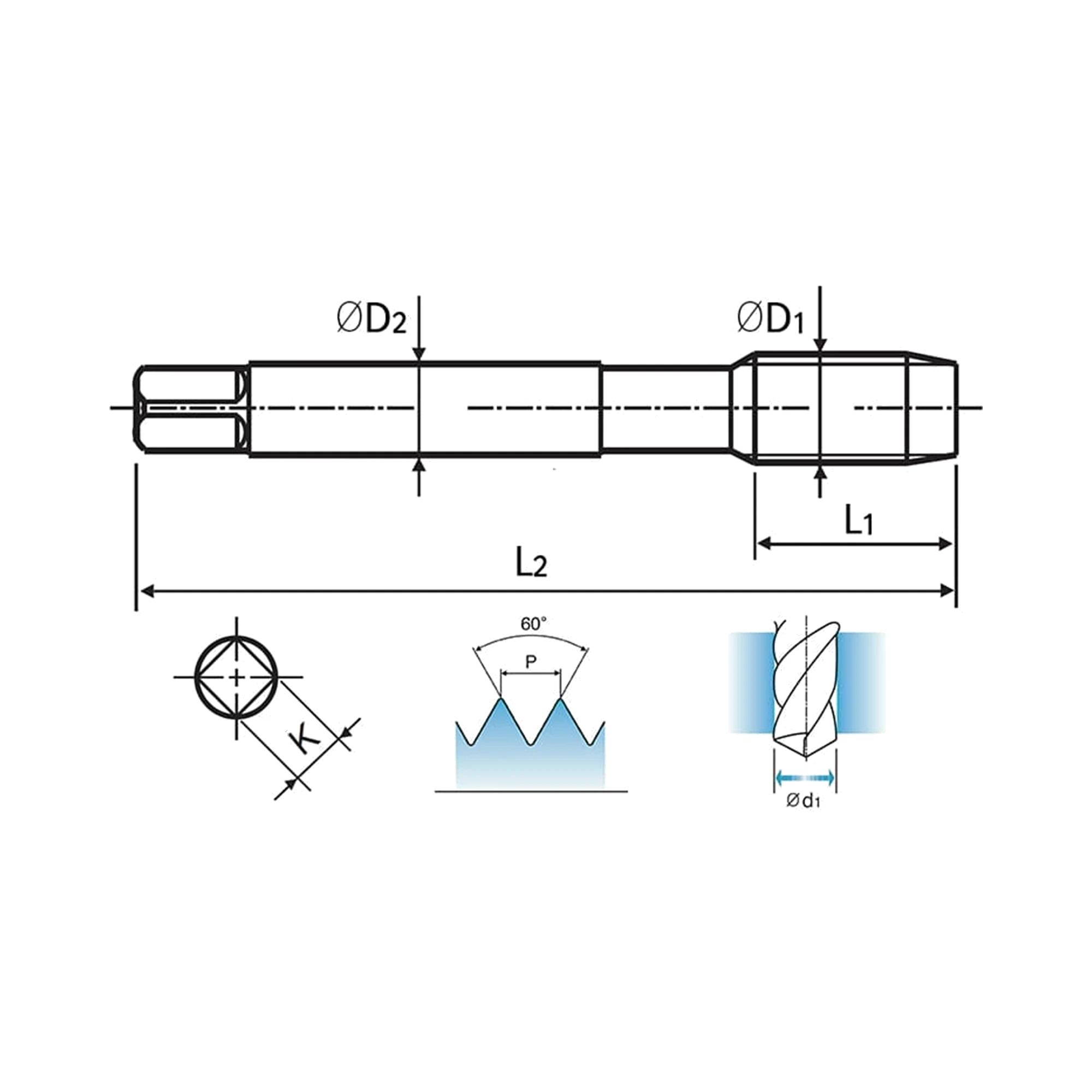

| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD804136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | 1-2 Weeks | $61.70 | ||
| TD804156 | M2.3 | 0.45 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.9 | 1-2 Weeks | $67.60 | ||
| TD804176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.05 | 1-2 Weeks | $52.60 | ||
| TD804496 | M2.6 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.1 | 1-2 Weeks | $57.70 | ||
| TD804206 | M3 | 0.5 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | Low stock | $42.20 | ||
| TD804226 | M3.5 | 0.6 | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.9 | 1-2 Weeks | $58.80 | ||
| TD804246 | M4 | 0.7 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | 1-2 Weeks | $42.90 | ||
| TD804266 | M4.5 | 0.75 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 3.7 | 1-2 Weeks | $62.70 | ||
| TD804286 | M5 | 0.8 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | In stock | $48.00 | ||
| TD804316 | M6 | 1.0 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | In stock | $48.00 | ||
| TD804346 | M7 | 1.0 | 10.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 6.0 | 1-2 Weeks | $63.10 | ||
| TD804366 | M8 | 1.25 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 10.0 | 3 | 6.8 | In stock | $55.50 | ||
| TD804396 | M9 | 1.25 | 13.0 | 90.0 | 35.0 | 9.0 | 7.0 | 11.0 | 3 | 7.8 | 1-2 Weeks | $81.70 | ||
| TD804426 | M10 | 1.5 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 9.0 | 3 | 8.5 | In stock | $74.30 | ||
| TD804506 | M12 | 1.75 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | In stock | $93.50 | ||
| TD804546 | M14 | 2.0 | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | 1-2 Weeks | $118.60 | ||
| TD804606 | M16 | 2.0 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | 1-2 Weeks | $142.80 | ||
| TD804656 | M18 | 2.5 | 25.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 15.5 | 1-2 Weeks | $186.30 | ||
| TD804706 | M20 | 2.5 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | 1-2 Weeks | $227.80 | ||
| TD804746 | M22 | 2.5 | 25.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 19.5 | 1-2 Weeks | $282.40 | ||
| TD804786 | M24 | 3.0 | 30.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 21.0 | 1-2 Weeks | $307.00 | ||
| TD804866 | M27 | 3.0 | 30.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 24.0 | 1-2 Weeks | $450.10 | ||
| TD804946 | M30 | 3.5 | 35.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 4 | 26.5 | 1-2 Weeks | $374.04 |
Add (TD804) HSS-E (M35) Metric Spiral Flute Combo Tap for Multi Purpose (TiN Coated) to comparison
View Comparison- Overview
- Specifications
- Work Material
- Reviews
YG-1 TD804 is a TiN-coated metric spiral flute combo tap for multi-purpose blind-hole threading. It combines drilling and tapping operations to produce metric coarse threads in one workflow. HSS-E construction, DIN 371/376 geometry and a 40° spiral flute support controlled chip evacuation. Designed for blind holes up to 2.5×D, the range covers M2 to M30 sizes. Available pitches span 0.4 mm to 3.5 mm across the supplied variants.
- HSS-E metric combo tap with TiN surface treatment
- Spiral flute geometry for blind holes up to 2.5×D
- DIN 371/376 tool standard
- 40° spiral flute angle for chip evacuation
- Metric coarse thread sizes from M2 to M30
- Supplied pitches from 0.4 mm to 3.5 mm
No specifications available.
Work materials
VDI 3323 recommendations for this tool.
Steel
10 gradesCast iron
4 gradesStainless steel
3 gradesNon-ferrous materials
4 gradesVDI grade reference21 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Good | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Good | 200 | 15 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 23 | NCast aluminium | Excellent | 75 | - |
| 26 | NCopper, bronze and brass | Excellent | 110 | - |
| 27 | NCopper, bronze and brass | Excellent | 90 | - |
| 28 | NCopper, bronze and brass | Excellent | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
