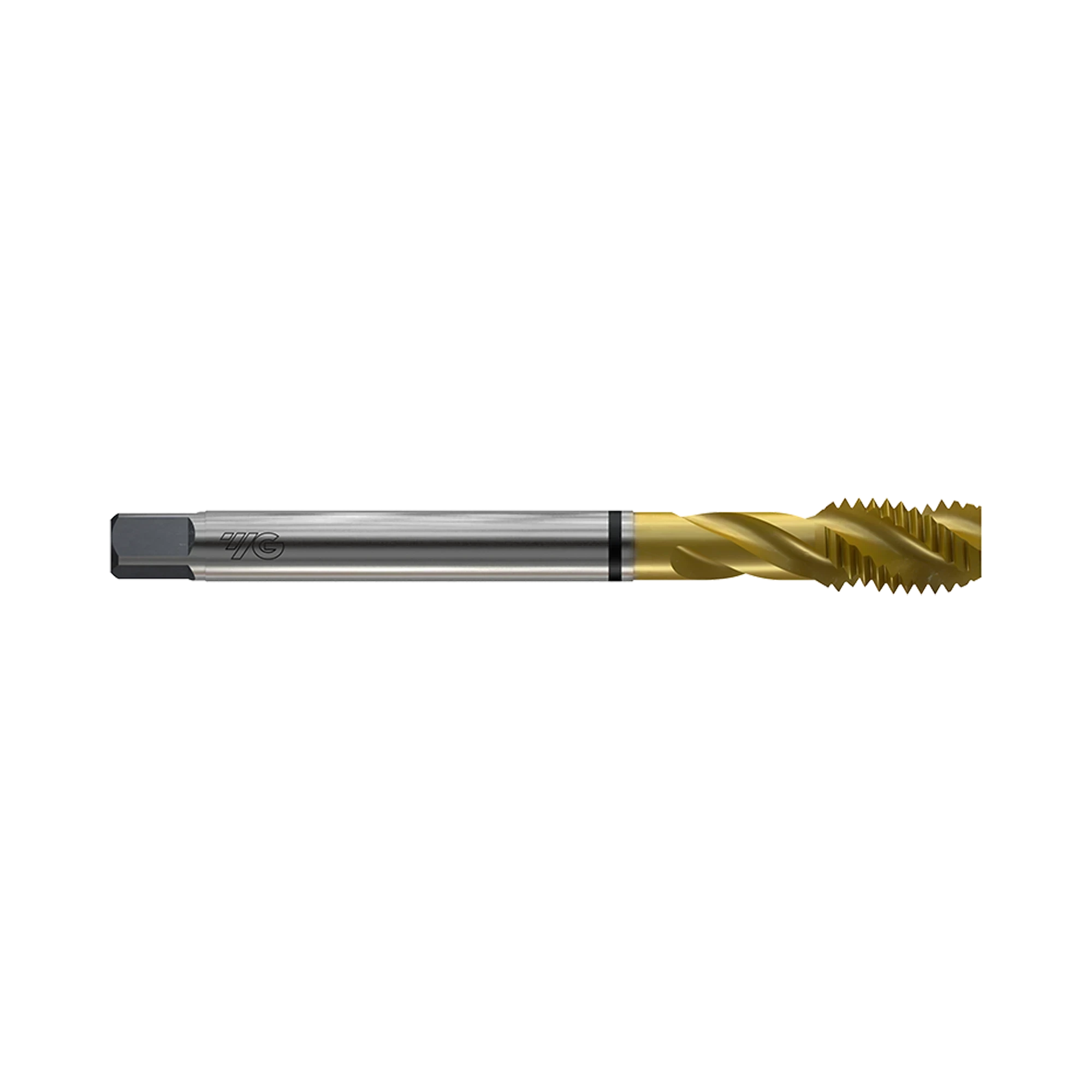

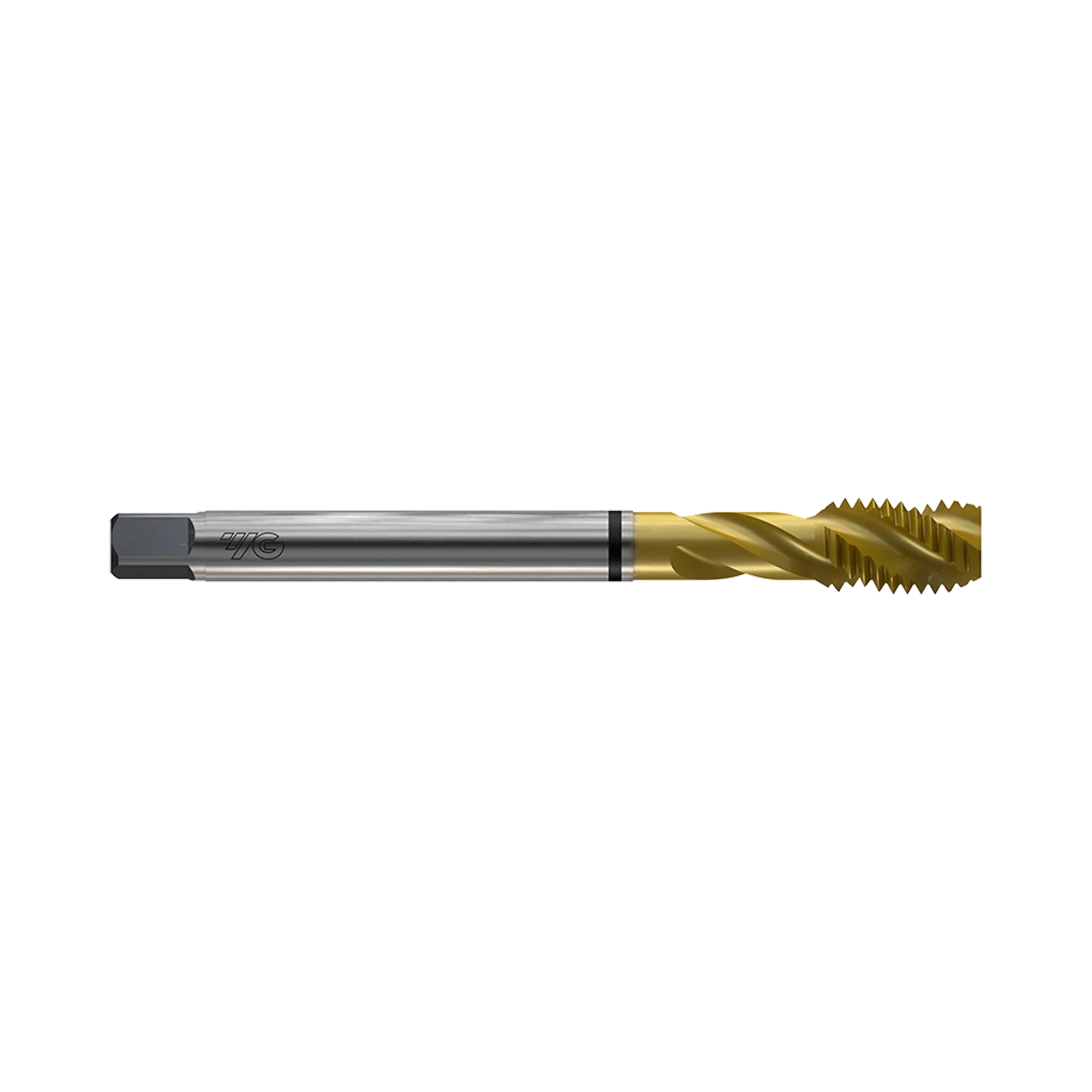

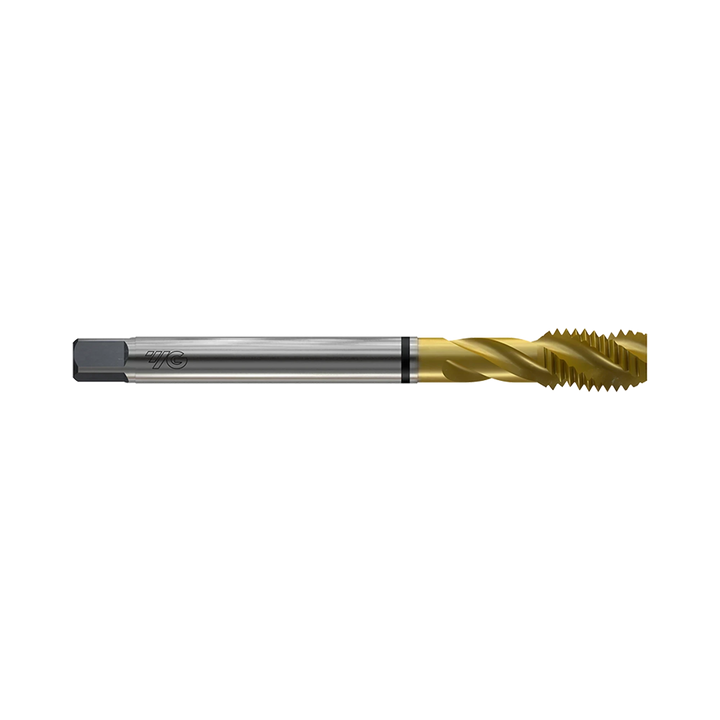

DIN371/DIN376 COMBO Spiral Flute TiN (TD824)

UNC TiN-Coated Spiral Tap
  • $47.74INC GST $43.40 EX GST
DIN371/DIN376 COMBO Spiral Flute TiN (TD824)
DIN371/DIN376 COMBO Spiral Flute TiN (TD824)
New

DIN371/DIN376 COMBO Spiral Flute TiN (TD824)

UNC TiN-Coated Spiral Tap
  • $47.74INC GST $43.40 EX GST

Code: TD824162

P M K N
    Key Features
  • HSS-E (M35) 5% Cobalt substrate
  • Spiral flute geometry for blind holes
  • TiN coating extends tool life
Size
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 COMBO Spiral Flute TiN (TD824) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

TD824 DIN371/DIN376 COMBO Spiral Flute TiN tap delivers precise UNC thread profiles in multiple materials. Made from HSS-E (M35) 5% Cobalt with a TiN coating for extended tool life. The spiral flute geometry suits blind holes, while YG-1’s patented design prevents over feeding and early tap failure.

  • HSS-E (M35) 5% Cobalt substrate
  • Spiral flute geometry for blind holes
  • TiN coating extends tool life
  • For steel, stainless, cast iron, aluminium, non-ferrous
  • UNC Universal Machine Tap
Product Data
Workpiece Material P M K N
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Titanium Nitride Coating
Thread Angle 60
Thread Class 2B
Thread Form C
Thread Shape UNC
Tool Material HSS-E
Tool Standard DIN 371-376
EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TD824162 #4 40 6 56 18 3.5 2.7 6 3 TD824202 #5 40 7 56 18 3.5 2.7 6 3 TD824242 #6 32 7 56 20 4 3 6 3 TD824282 #8 32 8 63 21 4.5 3.4 6 3 TD824322 #10 24 10 70 25 6 4.9 8 3 TD824362 #12 24 10 80 30 6 4.9 8 3 TD824402 1/4 20 13 80 30 7 5.5 8 3 TD824442 5/16 18 14 90 35 8 6.2 9 3 TD824482 3/8 16 16 100 39 9 7 10 3 TD824522 7/16 14 17 100 40 8 6.2 9 3 TD824562 1/2 13 20 110 44 9 7 10 3 TD824602 9/16 12 20 110 44 11 9 12 3 TD824642 5/8 11 22 110 44 12 9 12 3 TD824702 3/4 10 25 125 50 14 11 14 4 TD824742 7/8 9 27 140 54 18 14.5 17 4 TD824782 1" 8 30 160 60 20 16 19 4
Blind Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Great

Good Great Excellent
EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TD824162 #4 40 6 56 18 3.5 2.7 6 3 TD824202 #5 40 7 56 18 3.5 2.7 6 3 TD824242 #6 32 7 56 20 4 3 6 3 TD824282 #8 32 8 63 21 4.5 3.4 6 3 TD824322 #10 24 10 70 25 6 4.9 8 3 TD824362 #12 24 10 80 30 6 4.9 8 3 TD824402 1/4 20 13 80 30 7 5.5 8 3 TD824442 5/16 18 14 90 35 8 6.2 9 3 TD824482 3/8 16 16 100 39 9 7 10 3 TD824522 7/16 14 17 100 40 8 6.2 9 3 TD824562 1/2 13 20 110 44 9 7 10 3 TD824602 9/16 12 20 110 44 11 9 12 3 TD824642 5/8 11 22 110 44 12 9 12 3 TD824702 3/4 10 25 125 50 14 11 14 4 TD824742 7/8 9 27 140 54 18 14.5 17 4 TD824782 1" 8 30 160 60 20 16 19 4
