(TD814) HSS-E (M35) Metric Gun Point Combo Tap for Multi Purpose (TiN Coated)

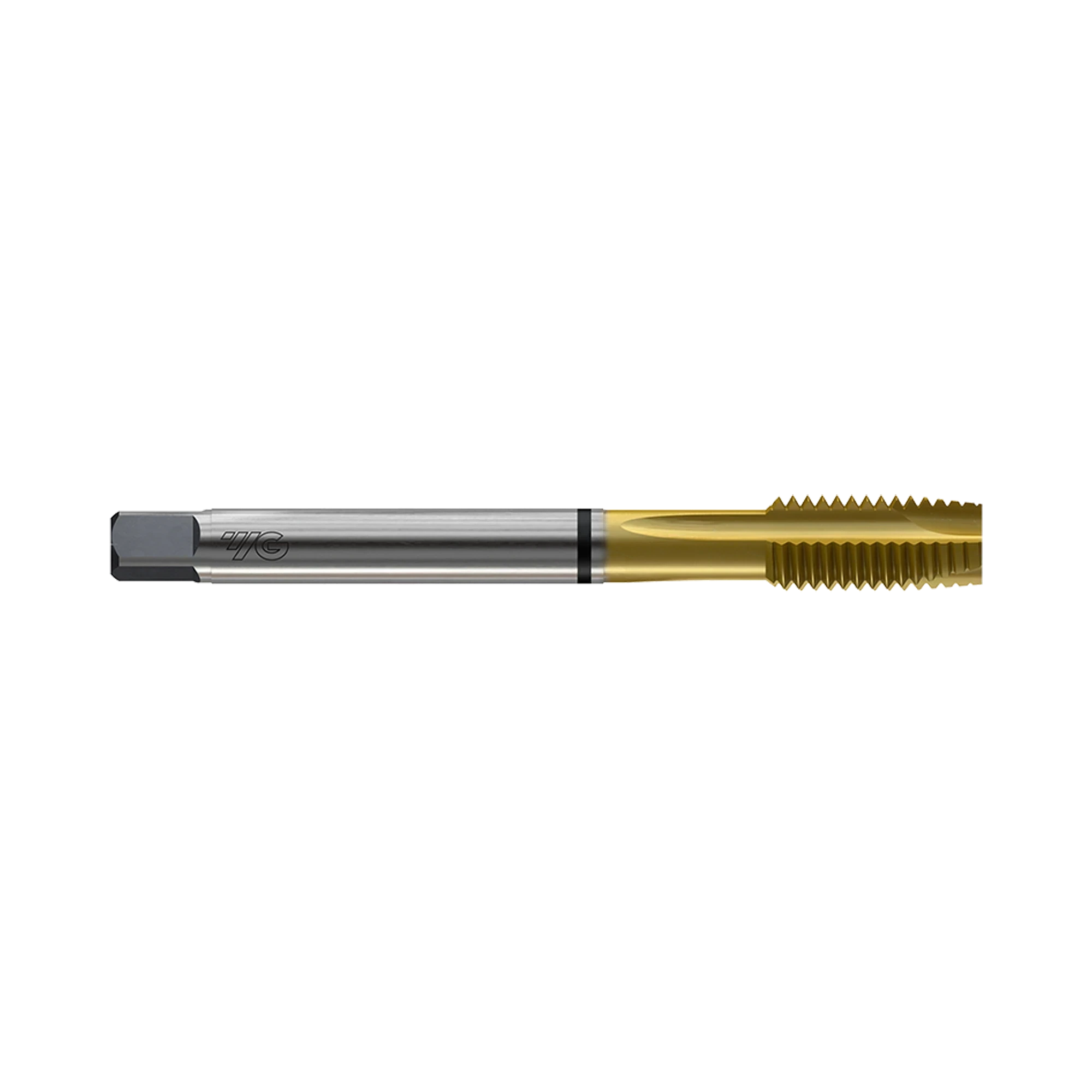

TiN-coated HSS-E combo tap for through holesCode: TD814136
-
Key Features
- TiN-coated HSS-E metric gun point combo tap
- ISO metric coarse threads to DIN 13
- Form B spiral-point geometry
Made in South Korea
Built for through holes
Spiral-point geometry supports machine tapping in through holes up to 3.0×D deep.
Accurate thread formation
Special tap geometry is designed to produce correct ISO metric coarse thread profiles.
Broad metric coverage
The family covers common coarse-pitch metric thread sizes from M2 to M39.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD814136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | In stock | $58.80 | ||
| TD814156 | M2.2 | 0.45 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.75 | 5 days | $64.40 | ||
| TD814196 | M2.3 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.9 | 5 days | $71.20 | ||
| TD814176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.05 | 5 days | $50.10 | ||
| TD814496 | M2.6 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.1 | 5 days | $54.90 | ||
| TD814206 | M3 | 0.5 | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | 5 days | $40.20 | ||
| TD814226 | M3.5 | 0.6 | 12.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.9 | 5 days | $56.00 | ||
| TD814246 | M4 | 0.7 | 13.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | 5 days | $40.40 | ||
| TD814266 | M4.5 | 0.75 | 14.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 3.7 | 5 days | $59.80 | ||
| TD814286 | M5 | 0.8 | 15.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | 5 days | $45.70 | ||
| TD814316 | M6 | 1 | 17.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | In stock | $45.70 | ||
| TD814346 | M7 | 1 | 17.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 6.0 | 5 days | $60.10 | ||
| TD814366 | M8 | 1.25 | 20.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.8 | 5 days | $52.90 | ||
| TD814396 | M9 | 1.25 | 20.0 | 90.0 | 35.0 | 9.0 | 7.0 | 10.0 | 3 | 7.8 | 5 days | $77.80 | ||
| TD814426 | M10 | 1.5 | 22.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 8.5 | 5 days | $70.80 | ||
| TD814506 | M12 | 1.75 | 24.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | In stock | $89.10 | ||
| TD814546 | M14 | 2 | 26.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | 5 days | $112.90 | ||
| TD814606 | M16 | 2 | 27.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | Low stock | $136.00 | ||
| TD814656 | M18 | 2.5 | 30.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 15.5 | 5 days | $177.50 | ||
| TD814706 | M20 | 2.5 | 32.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | 5 days | $217.00 | ||
| TD814746 | M22 | 2.5 | 32.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 19.5 | 5 days | $269.00 | ||
| TD814786 | M24 | 3 | 34.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 21.0 | 5 days | $289.80 | ||
| TD814866 | M27 | 3 | 36.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 24.0 | 5 days | $428.60 | ||
| TD814946 | M30 | 3.5 | 40.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 4 | 26.5 | 5 days | $505.40 | ||
| TD814C06 | M39 | 4 | 50.0 | 200.0 | 80.0 | 32.0 | 24.0 | 27.0 | 4 | 35.0 | 5 days | $897.20 |
Add (TD814) HSS-E (M35) Metric Gun Point Combo Tap for Multi Purpose (TiN Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 TD814 is a TiN-coated HSS-E metric gun point combo tap for multi-purpose through-hole threading. It produces ISO metric coarse threads to DIN 13 in holes up to 3.0×D deep. Its Form B spiral-point geometry is designed for accurate thread profiles and long tool life. The TiN coating distinguishes this TD814 series within YG-1’s multi-purpose combo tap range. Sizes cover M2 × 0.4 through M39 × 4 ISO metric coarse thread options. DIN 371 shanks suit M2 to M10, while DIN 376 shanks apply to larger sizes. This machine tap suits general-purpose through-hole threading where ISO metric coarse thread form is required. The range offers a straightforward choice for common metric coarse production threading tasks.
- TiN-coated HSS-E metric gun point combo tap
- ISO metric coarse threads to DIN 13
- Form B spiral-point geometry
- For through holes up to 3.0×D deep
- M2 × 0.4 to M39 × 4 thread sizes
- DIN 371 and DIN 376 shank configurations
