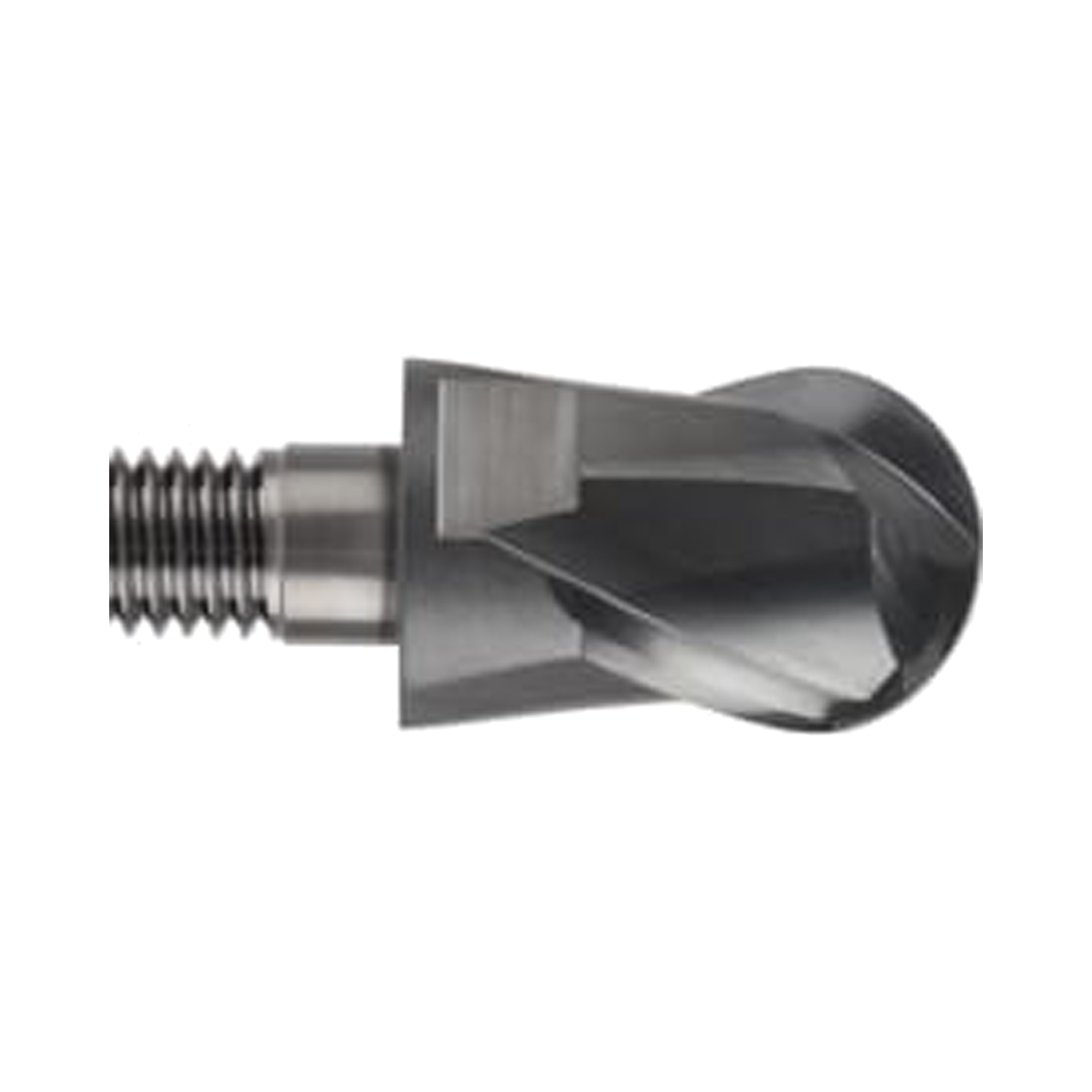

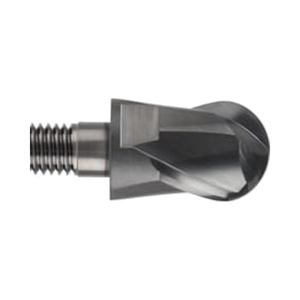

i-SMART 2 Flute 30°Helix Ball Modular End Mill (XSEMD98)

  • $0.00INC GST $0.00 EX GST
i-SMART 2 Flute 30°Helix Ball Modular End Mill (XSEMD98)
i-SMART 2 Flute 30°Helix Ball Modular End Mill (XSEMD98)
New

i-SMART 2 Flute 30°Helix Ball Modular End Mill (XSEMD98)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: XSEMD98100

P K H
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-SMART 2 Flute 30°Helix Ball Modular End Mill (XSEMD98) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The XSEMD98 series modular head is designed for ranges in diameter from 10-32mm, has a ball nose geometry with diameters from R5-R16mm and a 30° helix. The centre match geometry allows for high feed machining. These heads are suitable for use with i-Smart modular holders and high speed machining of steel

  • 2 Flute 30° Helix.
  • Ball nose geometry with radius from R5-R16.
  • High feed machining with centre match geometry.
  • Change the carbide head on the machine, no need to reset tool length.
  • Y1200 coated ultrafine micrograin carbide for machining up to 1200°C.
  • Quick change replaceable heads - multiple head size and styles with just 1 holder.
  • High Speed Machining (HSC).
  • High precision.
  • Large cost savings compared to solid carbide tools.
  • High precision head location.
  • Reduced machine downtime.
  • YG-1 provides high accuracy and performance at an economical price.

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R5.0
Size Max R16.0
Length CENTER MATCH
Coating Y-Coating



Product Data
Workpiece Material P K H
Ball Radius Tolerance 0.01
Hardened Steels(HRc40~45) Excellent
Helix Angle Ball Nose 30
No. Flutes 2
Operation Profiling, Side Milling
Surface Treatment YG-1 Y Coating
Tool Material Carbide

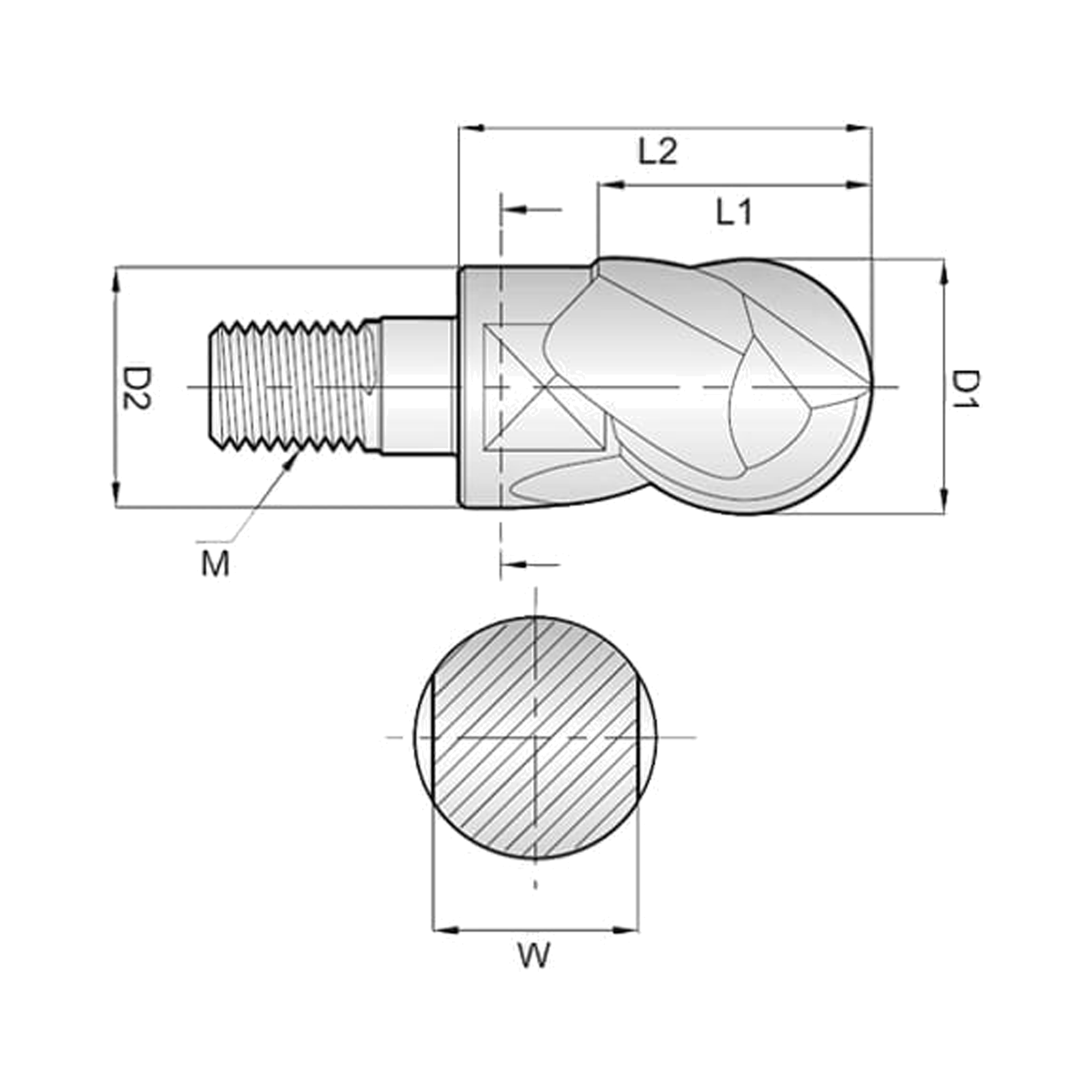

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEMD98100 10 9 10 17.5 8 M6 2 XSEMD98120 12 11 12 20.5 10 M6 2 XSEMD98160 16 15 16 25.5 13 M8 2 XSEMD98200 20 19 20 30 17 M10 2 XSEMD98250 25 24 25 37 22 M12 2 XSEMD98300 30 29 30 43 27 M16 2 XSEMD98320 32 31 32 45 27 M16 2
Profiling
Side Milling
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
H High Hardened Steels (HRc55~70)

Great

Good Great Excellent
EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEMD98100 10 9 10 17.5 8 M6 2 XSEMD98120 12 11 12 20.5 10 M6 2 XSEMD98160 16 15 16 25.5 13 M8 2 XSEMD98200 20 19 20 30 17 M10 2 XSEMD98250 25 24 25 37 22 M12 2 XSEMD98300 30 29 30 43 27 M16 2 XSEMD98320 32 31 32 45 27 M16 2
