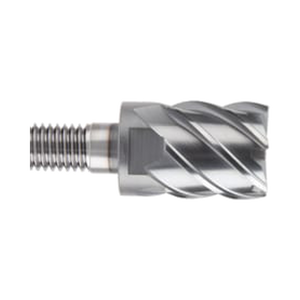

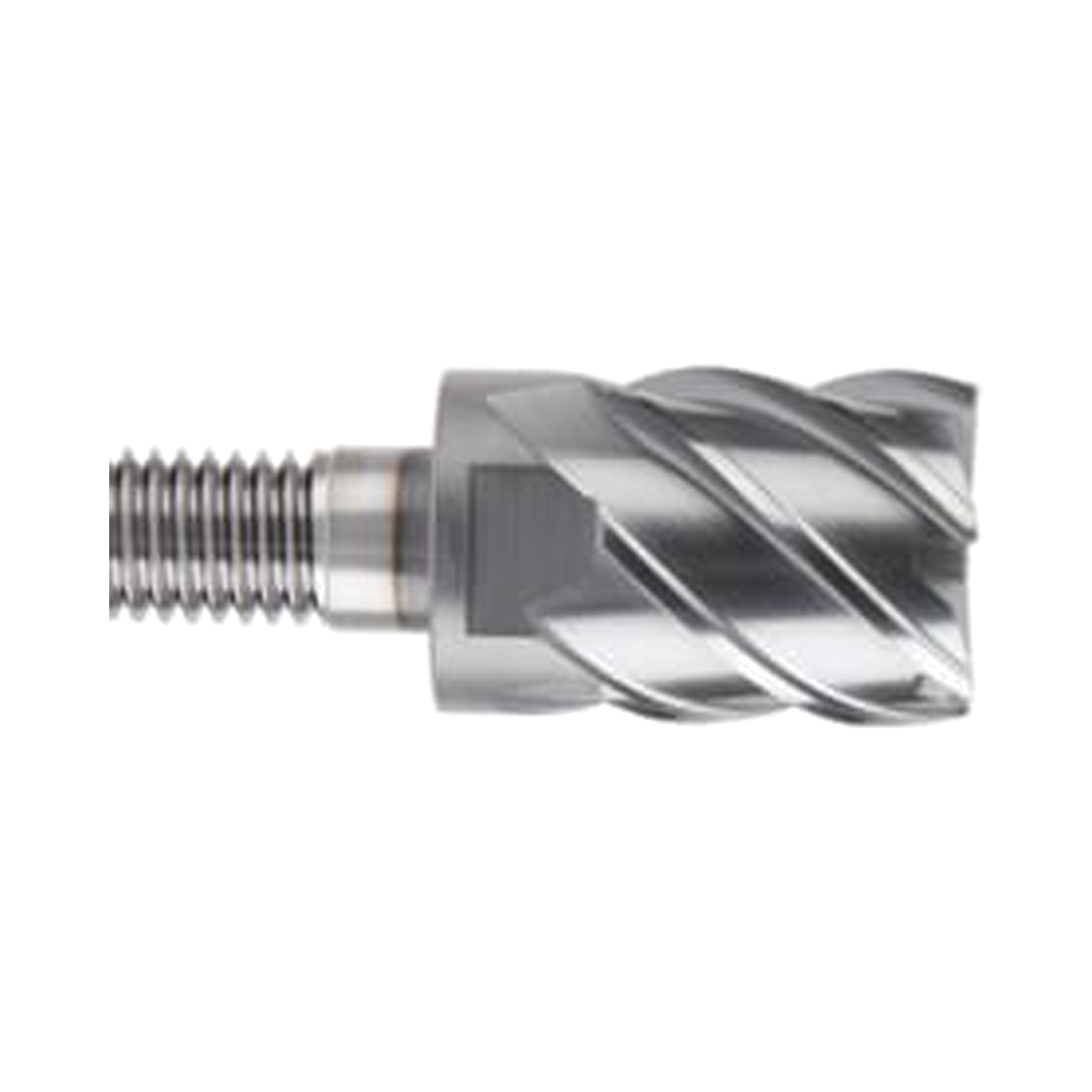

i-SMART 6 Flute 30°Helix Square Modular End Mill (XSEME75)

i-SMART 6 Flute 30°Helix Square Modular End Mill (XSEME75)
i-SMART 6 Flute 30°Helix Square Modular End Mill (XSEME75)
New

i-SMART 6 Flute 30°Helix Square Modular End Mill (XSEME75)

Product Code: XSEME75

YG-1 LEGEND 6 flutes No. Flutes: 6 YG-1 LEGEND Y COATING Surface Treatment: YG-1 Y Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45°
Buy Local

The XSEME75 series modular head is designed for ranges in diameter from 10-32mm and has a 45° helix. The 6 flute design allows for a high quality surface finish. These heads are suitable for use with i-Smart modular holders and high speed machining of steel

  • 45° Helix.
  • 6 flute design ensures a high quality surface finish.
  • Change the carbide head on the machine, no need to reset tool length.
  • Y1200 coated ultrafine micrograin carbide for machining up to 1200°C.
  • Quick change replaceable heads - multiple head size and styles with just 1 holder.
  • High Speed Machining (HSC).
  • High precision.
  • Large cost savings compared to solid carbide tools.
  • High precision head location.
  • Reduced machine downtime.
  • YG-1 provides high accuracy and performance at an economical price.



Specifications

Flutes 6
Helix Angle 45°
Cutting Edge Shape SQUARE
Size Min D10.0
Size Max D32.0
Length -
Coating Y-Coating



Product Data
Workpiece Material P K H
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 45
No. Flutes 6
Operation Corner, Facing, Side Milling
Surface Treatment YG-1 Y Coating
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-SMART 6 Flute 30°Helix Square Modular End Mill (XSEME75) to comparison

View Comparison

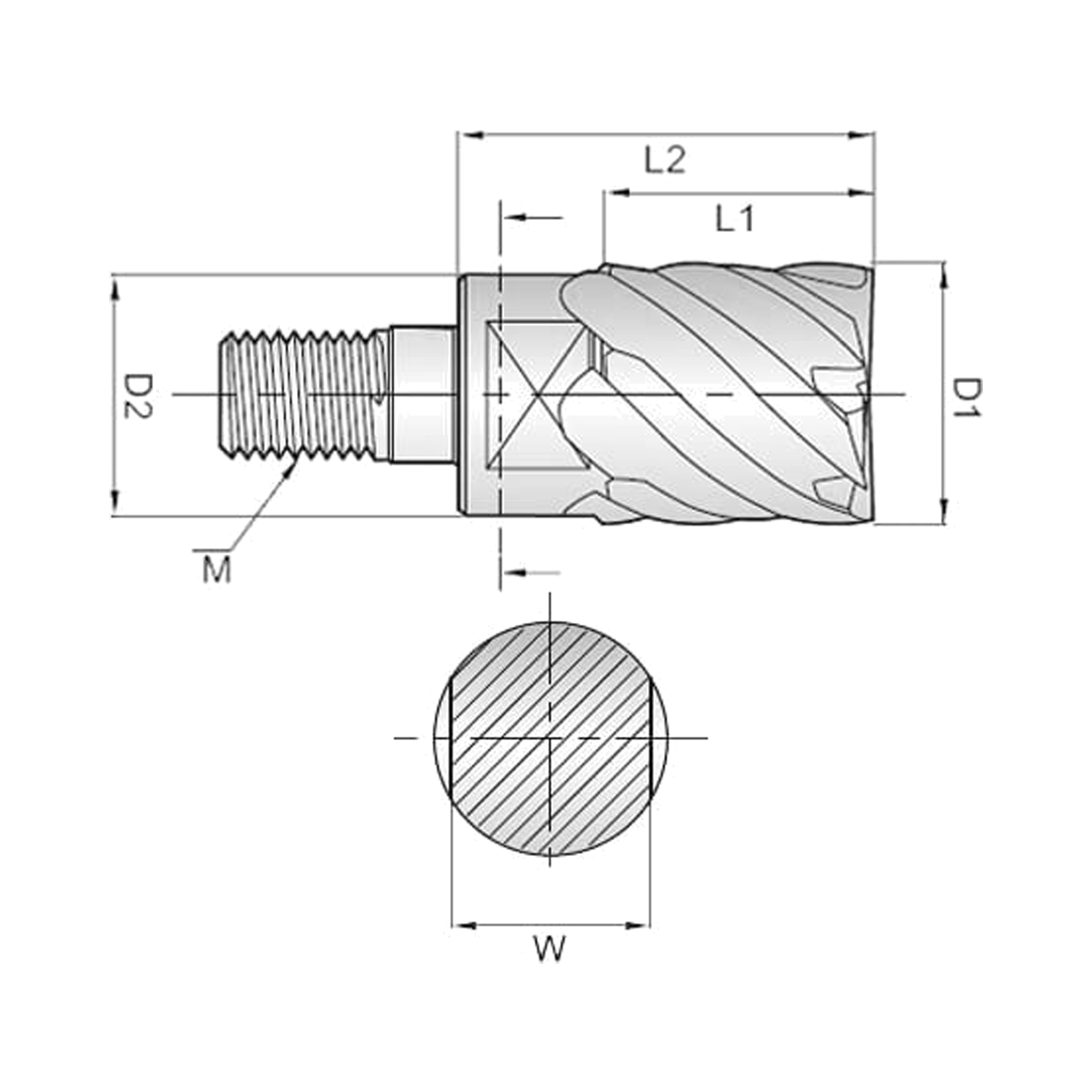

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME75100 10 9 10 17.5 8 M6 6 XSEME75120 12 11 12 20.5 10 M6 6 XSEME75160 16 15 16 25.5 13 M8 6 XSEME75200 20 19 20 30 17 M10 6 XSEME75250 25 24 25 37 22 M12 6 XSEME75300 30 29 30 43 27 M16 6 XSEME75320 32 31 32 45 27 M16 6

Video

Operation

Side Milling
Facing
Corner

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
H High Hardened Steels (HRc55~70)

Great

Good Great Excellent
