Product Description

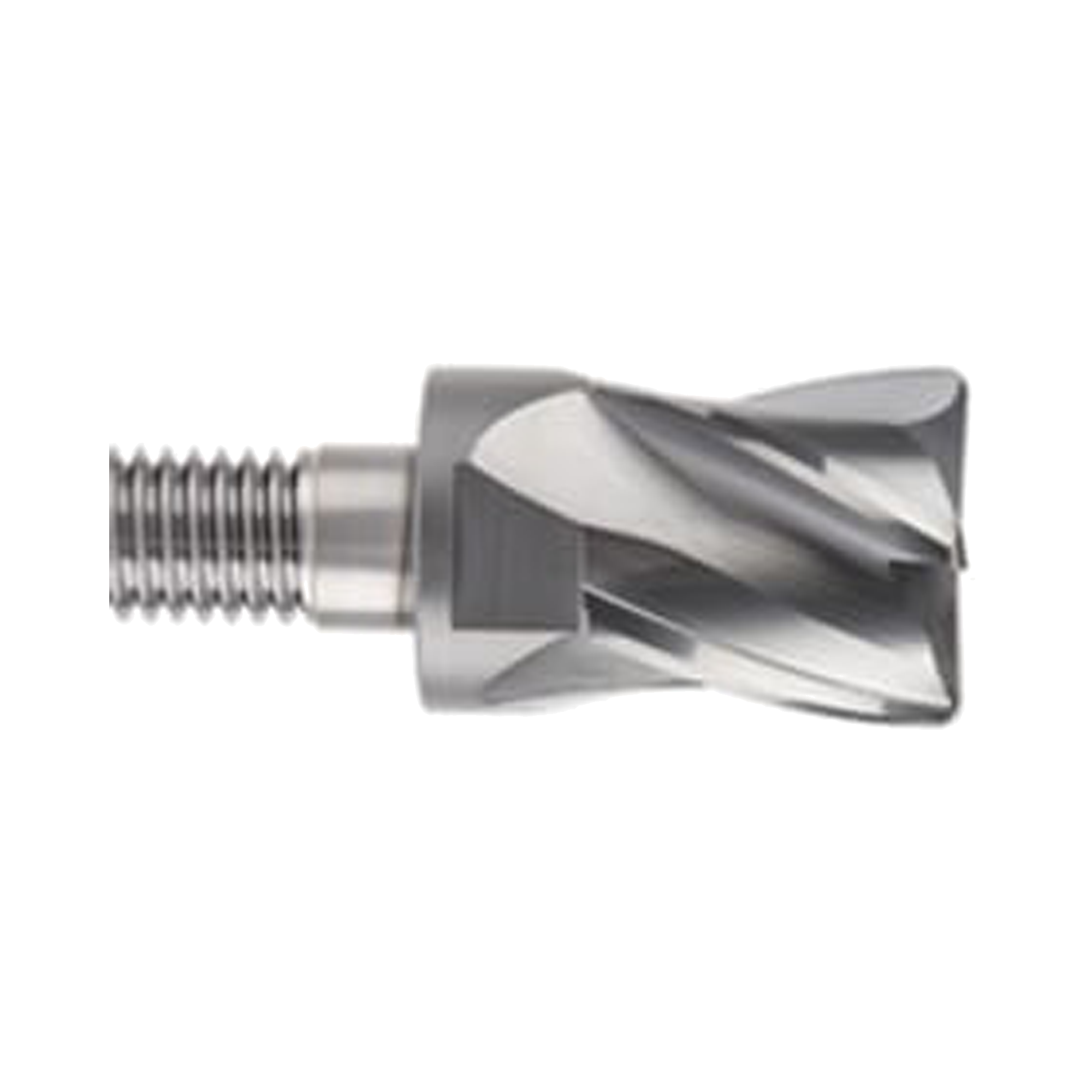

The XSEME01 series multiple helix modular head is designed for ranges in diameter from 10-32mm and has a corner radius from R0.1mm to R5mm. The multiple helix design reduces vibration and increases tool life. These heads are suitable for use with i-Smart modular holders and high speed machining of steel

  • 4 Flute multiple helix reduces vibration and increases tool life in heavy machining conditions.
  • Corner radius strengthens cutting edge and prevents chipping of the tool.
  • Change the carbide head on the machine, no need to reset tool length.
  • Y1200 coated ultrafine micrograin carbide for machining up to 1200°C.
  • Quick change replaceable heads - multiple head size and styles with just 1 holder.
  • High Speed Machining (HSC).
  • High precision.
  • Large cost savings compared to solid carbide tools.
  • High precision head location.
  • Reduced machine downtime.
  • YG-1 provides high accuracy and performance at an economical price.

Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.02
Hardened Steels(HRc40~45) Great
Helix Angle Multiple Helix 27/30
No. Flutes 4
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 4
Helix Angle 27°/30° (MULTIPLE HELIX)
Cutting Edge Shape CORNER RADIUS
Size Min D10.0
Size Max D32.0
Length -
Coating Y-Coating

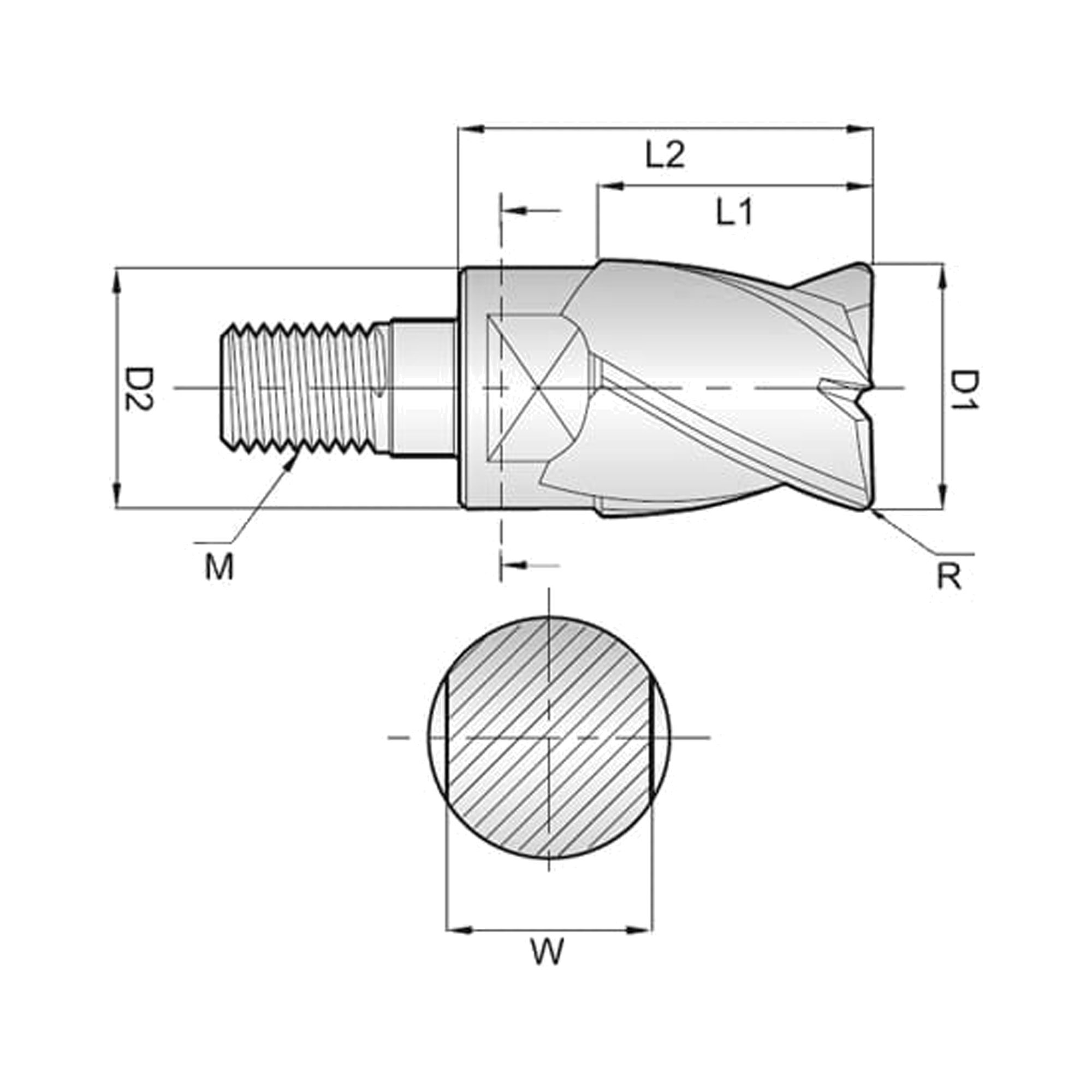

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME01100010 10 9 10 17.5 8 M6 4 XSEME01100020 10 9 10 17.5 8 M6 4 XSEME01100030 10 9 10 17.5 8 M6 4 XSEME01100050 10 9 10 17.5 8 M6 4 XSEME01100100 10 9 10 17.5 8 M6 4 XSEME01100150 10 9 10 17.5 8 M6 4 XSEME01100200 10 9 10 17.5 8 M6 4 XSEME01100250 10 9 10 17.5 8 M6 4 XSEME01100300 10 9 10 17.5 8 M6 4 XSEME01100400 10 9 10 17.5 8 M6 4 XSEME01120010 12 11 12 20.5 10 M6 4 XSEME01120020 12 11 12 20.5 10 M6 4 XSEME01120030 12 11 12 20.5 10 M6 4 XSEME01120050 12 11 12 20.5 10 M6 4 XSEME01120100 12 11 12 20.5 10 M6 4 XSEME01120150 12 11 12 20.5 10 M6 4 XSEME01120200 12 11 12 20.5 10 M6 4 XSEME01120250 12 11 12 20.5 10 M6 4 XSEME01120300 12 11 12 20.5 10 M6 4 XSEME01120400 12 11 12 20.5 10 M6 4 XSEME01120500 12 11 12 20.5 10 M6 4 XSEME01160050 16 15 16 25.5 13 M8 4 XSEME01160100 16 15 16 25.5 13 M8 4 XSEME01160150 16 15 16 25.5 13 M8 4 XSEME01160200 16 15 16 25.5 13 M8 4 XSEME01200050 20 19 20 30 17 M10 4 XSEME01200100 20 19 20 30 17 M10 4 XSEME01200150 20 19 20 30 17 M10 4 XSEME01200200 20 19 20 30 17 M10 4 XSEME01250050 25 24 25 37 22 M12 4 XSEME01250100 25 24 25 37 22 M12 4 XSEME01250150 25 24 25 37 22 M12 4 XSEME01250200 25 24 25 37 22 M12 4 XSEME01300050 30 29 30 43 27 M16 4 XSEME01300100 30 29 30 43 27 M16 4 XSEME01300150 30 29 30 43 27 M16 4 XSEME01300200 30 29 30 43 27 M16 4 XSEME01320050 32 31 32 45 27 M16 4 XSEME01320100 32 31 32 45 27 M16 4 XSEME01320150 32 31 32 45 27 M16 4 XSEME01320200 32 31 32 45 27 M16 4
Side Milling
Slotting
Die Sinking
Facing
Corner
Helical Interpol
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
H High Hardened Steels (HRc55~70)

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME01100010 10 9 10 17.5 8 M6 4 XSEME01100020 10 9 10 17.5 8 M6 4 XSEME01100030 10 9 10 17.5 8 M6 4 XSEME01100050 10 9 10 17.5 8 M6 4 XSEME01100100 10 9 10 17.5 8 M6 4 XSEME01100150 10 9 10 17.5 8 M6 4 XSEME01100200 10 9 10 17.5 8 M6 4 XSEME01100250 10 9 10 17.5 8 M6 4 XSEME01100300 10 9 10 17.5 8 M6 4 XSEME01100400 10 9 10 17.5 8 M6 4 XSEME01120010 12 11 12 20.5 10 M6 4 XSEME01120020 12 11 12 20.5 10 M6 4 XSEME01120030 12 11 12 20.5 10 M6 4 XSEME01120050 12 11 12 20.5 10 M6 4 XSEME01120100 12 11 12 20.5 10 M6 4 XSEME01120150 12 11 12 20.5 10 M6 4 XSEME01120200 12 11 12 20.5 10 M6 4 XSEME01120250 12 11 12 20.5 10 M6 4 XSEME01120300 12 11 12 20.5 10 M6 4 XSEME01120400 12 11 12 20.5 10 M6 4 XSEME01120500 12 11 12 20.5 10 M6 4 XSEME01160050 16 15 16 25.5 13 M8 4 XSEME01160100 16 15 16 25.5 13 M8 4 XSEME01160150 16 15 16 25.5 13 M8 4 XSEME01160200 16 15 16 25.5 13 M8 4 XSEME01200050 20 19 20 30 17 M10 4 XSEME01200100 20 19 20 30 17 M10 4 XSEME01200150 20 19 20 30 17 M10 4 XSEME01200200 20 19 20 30 17 M10 4 XSEME01250050 25 24 25 37 22 M12 4 XSEME01250100 25 24 25 37 22 M12 4 XSEME01250150 25 24 25 37 22 M12 4 XSEME01250200 25 24 25 37 22 M12 4 XSEME01300050 30 29 30 43 27 M16 4 XSEME01300100 30 29 30 43 27 M16 4 XSEME01300150 30 29 30 43 27 M16 4 XSEME01300200 30 29 30 43 27 M16 4 XSEME01320050 32 31 32 45 27 M16 4 XSEME01320100 32 31 32 45 27 M16 4 XSEME01320150 32 31 32 45 27 M16 4 XSEME01320200 32 31 32 45 27 M16 4
